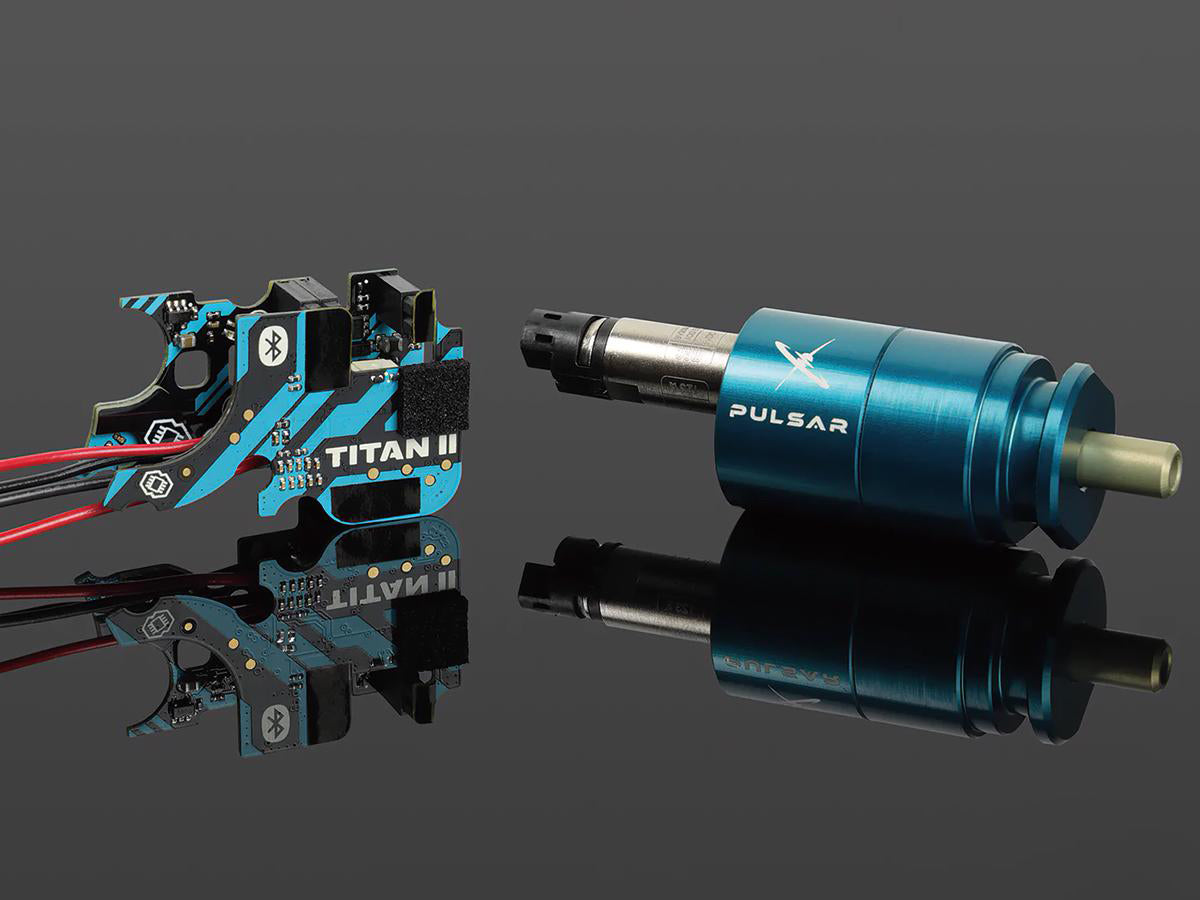

GATE PULSAR S HPA Engine with TITAN II Bluetooth

GATE PULSAR S HPA Engine with TITAN II Bluetooth

Regular price $340.00 USD
Regular price $0.00 USD Sale price $340.00 USD
Sale Sold out
  • Features

    • Additionally stabilized nozzle ensures FPS consistency and eliminates Mid-cap syndrome
    • Multifunctional port ready to connect accessories such as Bolt-catch button, magazine sensor, Hop-up chamber tracer, electric magazine power supply or a flashlight
    • Smart trigger and five optical trigger sensors allow you to control trigger sensitivity without disassembly and provide faster response. Additionally equipped with Two selector sensors allow you to take advantage of hundreds of selector mode variations, depending on firmware edition.
    • Victory in the game is often a matter of fractions of seconds. The new advanced cycle detection algorithm, thanks to a dual gear sensor, allows for smooth and precise pre-cocking adjustments in even the most exigent configurations increasing trigger response. Thanks to pre-cocking, you gain a trigger reaction similar to a real replica. This allows for initial spring compression, which speeds up trigger response significantly
    • Mag feature allows for simulating magazines of lower capacity than actually used. Depending on Firmware Edition, allows you to set a simulation of magazine capacity from 1 BB up to 250 BBs. Even if you have a high-capacity magazine, this function lets you truly increase the realism of your game by imitating that your magazine is real-cap
    • ROF control enables the reduction of a gun's rate of fire. You can use stronger batteries and still have a ROF exactly as you like. Depending on firmware edition, you can choose between Adaptive, Manual PWM, Manual Delay, and Manual Delay + PWM
    • Protection against battery over-discharge. Modern LiPo and LiFe batteries are very sensitive to over-discharge. If you do not want to damage the battery and you care about its service life, this protection is indispensable. The microprocessor is constantly monitoring battery voltage. When voltage drops to a critical level, it will not allow firing. The number of battery cells can be detected automatically
    • Active braking adjust the motor's braking power according to your needs. Choose breaking value manually or set the Adaptive Active Brake. It will stop the piston in the front position, which eliminates unnecessary stresses, increasing the service life of the gearbox and its parts
    • Thanks to the gear sensor, TITAN precisely detects where the cycle should finish. Therefore, even the shortest trigger action produces at least one full cycle. The optical sector gear sensor counts each tooth of the gear, so it's possible to use all types of gears: Infinite Torque-up, DSG, SSG, 19-tooth, and standard ones. In EXPERT Firmware, you can select the cycle manually
    • Diagnostics & updates feature allows you to troubleshoot your AEG in case of any issue. Errors are communicated once they occur, and their description can be found in the GCS App. GCS allows for making firmware updates via the internet, which enables you to quickly apply changes, improvements, and bugfixes
    • The Smart Fuse protects your AEG's battery, motor, and controller, even in case of reverse battery connection. A combination of current, voltage, and temperature measurements makes your AEG installation highly reliable. It protects the MOSFET against overheating, overloading, and short-circuiting. If your airsoft gun gets jammed, this function protects the motor and battery against damage
    PULSAR S HPA Engine with TITAN II Bluetooth® - the world's smallest & most advanced single solenoid HPA engine. The first HPA engine controlled by an ETU with optical sensors. Thanks to the newest flagship TITAN II Bluetooth® combined with HPA technology you get a ludicrous trigger response, unknown before in the airsoft world. With the user-friendly GCS app for smartphones you can manage your settings live, even straight from the field! Set the fire selector modes, trigger sensitivity, ROF or connect your smartwatch in order to know how many BBs are left in your magazine. You'll find all the electronics inside the gearbox (free space in the butt stock or the grip). For the first time ever, users of HPA replicas can experience a multitude of airsoft replica settings and configurations as well as an optical trigger sensor, which has been till now possible only for AEG users. With the newest sensor, you can set trigger sensitivity unattainable before - even 50 sensitivity points in the first millimeter of movement. Finally, GATE technology breaks into the world of HPA replicas. Take your replica into the future!

    What makes TITAN II so special?
    • Mind-blowing trigger sensor, with the advantages of the TITAN sensor but with the ability to set hair trigger with ludicrous precision: even 50 sensitivity levels for the first millimeter of trigger movement
    • Brand-new patented gear sensor detects each tooth and the direction of gear movement allowing for the world's most precise cycle control
    • Mechanical protection of trigger sensors increase reliabilitytrigger sensors damage is now covered by warranty
    • Ultra-precise telemetry measurements thanks to the new current sensor
    • Pre-Cocking can be set in %
    • Build in boost convertertrouble-free operation in low temperatures
    • Lowest in the market current consumption. Deep sleep mode with only 0.1 mA current consumption prevents battery discharge (3x lower consumption than in current ETUs, which already had the lowest current consumption on the market)


    Connect your TITAN with the GCS App via Bluetooth® and get total control of your AEG:
    • Control your airsoft gun from your iOS, Android, macOS or Windows device
    • Set trigger sensitivity exactly as you like and adjust other TITAN settings in a simple way
    • Use automatic Pre-Cocking to gain a trigger reaction just like in a real gun
    • Try out ROF control, magazine simulation, and other functions
    • Update and upgrade Firmware
    • Check BB counters and telemetric data
    • Perform diagnostics and send reports
    • Virtual STATUS for smartwatches and smartphones
    • Bolt Catch and magazine sensors for a realistic reload sequence

    Manufacturer: GATE

    Specifications:

    PULSAR Single Solenoid Specifications
    Solenoid Voltage Range: 5-8.4V
    Operating Pressure: 60-140 PSI high pressure only
    Gas Consumption: For 90 PSI and a 48 ci/0.8 l 300 bar/4500 PSI bottle 1 PSI per shot
    Dimensions (Length x Diameter): 88 mm x 25.4 mm
    Finished Product Weight: 75g
    Operating Temperature Range: min. -15°C, max. +50°C
    Relative Humidity: ≤80%
    Adjustable ROF: 1 to 100 RPS
    Velocity: 200 550 FPS
    Operation Mode: Open Bolt
    Pressure Range: 60 to 140 PSI

    TITAN II Bluetooth® Specifications:
    Supply Voltage Range: 3.75-17 VDC
    Rated Current: 30 A
    Current Consumption: 27 mA
    Low Power Mode: 100 µA
    Connectivity: Bluetooth® 5.2 Low Energy
    Dimensions (Length x Width x Thickness): 47.2 mm x 28.9 mm x 14.5 mm
    Finished Product Weight: 28.2 g
    Operating Temperature Range: min. -15°C, max. +50°C
    Relative Humidity: ≤80%
    Note:
    • Due to the nature of the design and operation of the engine, the compatibility range of the nozzle length is between 21.25 mm and 21.40 mm relative to that of the AEG nozzle
    • Please note that in the case of dual solenoid engines, it is not possible to connect any extra devices requiring a power supply.
